    Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security

    Ask Lasest Price
    Brand Name : Yuntong
    Model Number : YT-1612
    Certification : CE Certificate,SGS
    Payment Terms : T/T, , Western Union, Papal
    Supply Ability : 1000000 square meters per year
    Delivery Time : Within 2 weeks after detail confirms
    • Product Details
    • Company Profile

    Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security

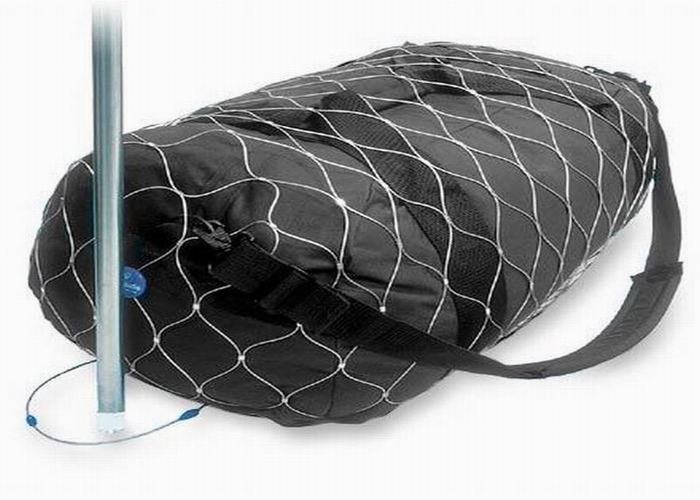

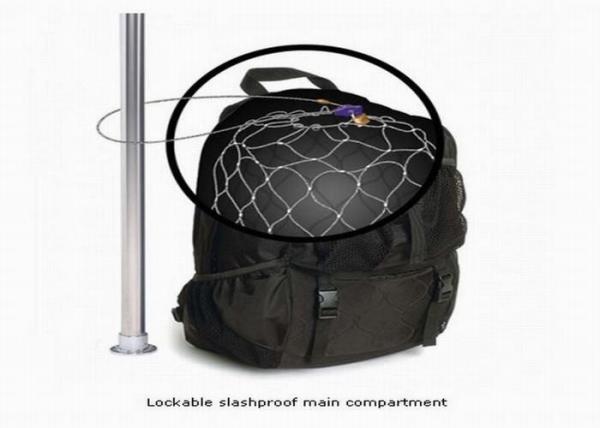

    Metal Rope Mesh Security Bags Travel Security Anti Theft Bags


    Specification of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:


    1. Material : Stainless steel 304,304L,316,306L etc.
    2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
    3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)


    Mesh Types of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:


    The Metal Wire Rope Mesh for Anti-theft Travelling Bags Security are handmade from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh


    1) Kontted mesh is a kind of plain weave, each wrap wire rope crosses alternately above and below each weft wire rope, warp and weft wire ropes generally have the same diameter.


    2) Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.


    Usage of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:


    Our stainless steel black oxide mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.


    YT-stainless steel rope mesh
    ModelWire DiameterMesh OpeningNormal Break
    inchmminchmm1bs.
    YT-12203/641.24/5 x 4/520 x 20270
    YT-12253/641.21x125.4 x 25.4270
    YT-12303/641.21.2 x 1.230 x 30270
    YT-12383/641.23/2 x 3/238 x 38270
    YT-16251/161.61 x 125.4 x 25.4480
    YT-16301/161.61.2 x 1.230 x 30480
    YT-16381/161.63/2 x 3/238 x 38480
    YT-16501/161.62 x 251 x 51480
    YT-16761/161.63 x 376 x 76480
    YT-20385/642.03/2 x 3/238 x 38676
    YT-20505/642.02 x 251 x 51676
    YT-20605/642.02.4 x 2.460 x 60676
    YT-20765/642.03 x 376 x 76676
    YT-24503/322.42 x 251 x 51920
    YT-24603/322.42.4 x 2.460 x 60920
    YT-24763/322.43 x 376 x 76920
    YT-24903/322.43.55 x 3.5590 x 90920
    YT-24103/322.44 x 4102 x 102920
    YT-32501/83.22 x 251 x 511600
    YT-32761/83.23 x 376 x 761600
    YT-32901/83.23.55 x 3.5590 x 901600
    YT-32101/83.24 x 4102 x 1021600
    YT-32121/83.24.75 x 4.75120 x 1201600

    Service of Yuntong:


    Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
