Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter

    Buy cheap Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter from wholesalers

    Buy cheap Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter from wholesalers
    • Buy cheap Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter from wholesalers
    • Buy cheap Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter from wholesalers

    Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter

    Ask Lasest Price
    Brand Name : Yuntong
    Model Number : YT-2450
    Certification : CE Certificate,SGS
    Payment Terms : T/T, , Western Union, Papal
    Supply Ability : 1000000 square meters per year
    Delivery Time : Within 2 weeks after detail confirms
    • Product Details
    • Company Profile

    Inox 316 Decorative Rope Mesh / Safety Rope Mesh With 1.2mm-3.2mm Wire Diameter

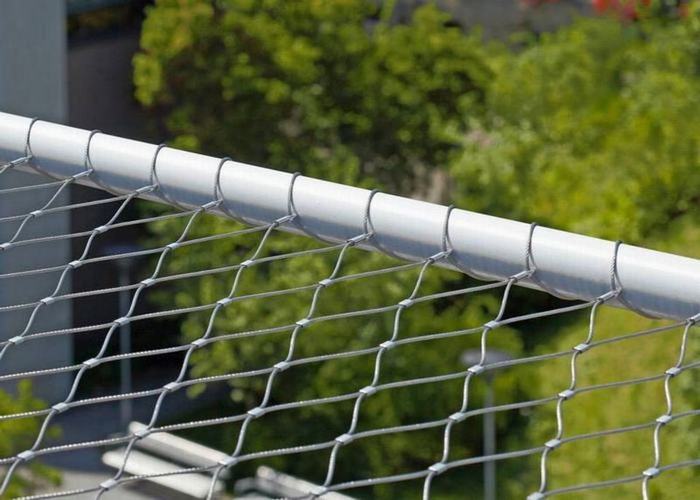

    Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety


    Introduction of Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety:

    The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.


    Specification of Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety:


    1. Material : Stainless steel 304,304L,316,306L etc.
    2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
    3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)


    Usage of Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety:

    Our stainless steel rope mesh for children security is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.


    Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety is suitable for building projects under difficult topographic conditions or special demands for example caused by the environmental protection. The lightweight stainless steel rope mesh is transported easily and installed on the border tubes or cables of the balustrade without extensive installation equipment. Alternatively there are pre-installed custom–sized stainless steel frames for balustrade fillings.


    Inox 316 Wire Cable Net Safety Netting On Bridges to Keep People Safety
    ModelWire DiameterMesh OpeningNormal Break
    inchmminchmm1bs.
    YT-12203/641.24/5 x 4/520 x 20270
    YT-12253/641.21x125.4 x 25.4270
    YT-12303/641.21.2 x 1.230 x 30270
    YT-12383/641.23/2 x 3/238 x 38270
    YT-16251/161.61 x 125.4 x 25.4480
    YT-16301/161.61.2 x 1.230 x 30480
    YT-16381/161.63/2 x 3/238 x 38480
    YT-16501/161.62 x 251 x 51480
    YT-16761/161.63 x 376 x 76480
    YT-20385/642.03/2 x 3/238 x 38676
    YT-20505/642.02 x 251 x 51676
    YT-20605/642.02.4 x 2.460 x 60676
    YT-20765/642.03 x 376 x 76676
    YT-24503/322.42 x 251 x 51920
    YT-24603/322.42.4 x 2.460 x 60920
    YT-24763/322.43 x 376 x 76920
    YT-24903/322.43.55 x 3.5590 x 90920
    YT-24103/322.44 x 4102 x 102920
    YT-32501/83.22 x 251 x 511600
    YT-32761/83.23 x 376 x 761600
    YT-32901/83.23.55 x 3.5590 x 901600
    YT-32101/83.24 x 4102 x 1021600
    YT-32121/83.24.75 x 4.75120 x 1201600

    Service of Yuntong:

    Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
